HPLC常用管件 (Nut, Ferrule, Union, Fitting, Adapter)


***以下皆為立行常備品(現貨),若有其它規格需求,請參閱原廠網站或來電詢問!***

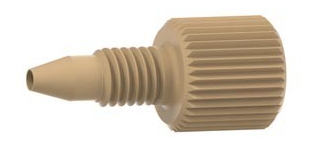

一體成型螺帽套環 (One-piece fittings)

PEEK
Description Qty/pkg Product No.
10-32 Coned, for 1/16" OD 10 9201-1
Narrow hex-head/ fingertight     5 JR-5508


螺帽 & 套環  (Nuts & Ferrules)

Stainless Steel
 Description Qty/pkg Product No.
1/16" Nut 10 9038W-1
1/16" Ferrule 10 4007W-1

PEEK
Description Qty/pkg Product No.
1/16" Nut 5 JR-5511-5
1/16" Ferrule 5 JR-5004-5

Teflon
Description Qty/pkg Product No.
1/16" Nut 10 JR-040white
1/16" Ferrule 10 JR-041


管件轉接頭 (Unions)

1/16" to 1/16"
Description Bore (mm) Qty/pkg Product No.
PEEK 0.25 1 JR-061
S.S 0.50 1 ZU1MS6

1/8" to 1/16"
Description Bore (mm) Qty/pkg Product No.
PEEK 0.75 1 JR-ZRU21FPK
S.S 0.75 1 JR-ZRU21


三通 & 四通接頭 (Tees & Crosses)

Tee
Description Bore (mm) Qty/pkg Product No.
1/16" PEEK 0.25 1 (含Fitting) JR-1040
S.S JR-ZX1C

Cross(非常備品)
Description Bore (mm) Qty/pkg Product No.
1/16" PEEK 0.25 1 (含Fitting) JR-1030
S.S JR-ZT1C


Column連接頭 (Column couplers)



Color ID Product No.
Red 0.13 mm JR-26501
Yellow 0.17 mm JR-26502
Blue 0.25 mm *JR-26503
Orange 0.50 mm JR-26504
*僅JR-26503為常備品
